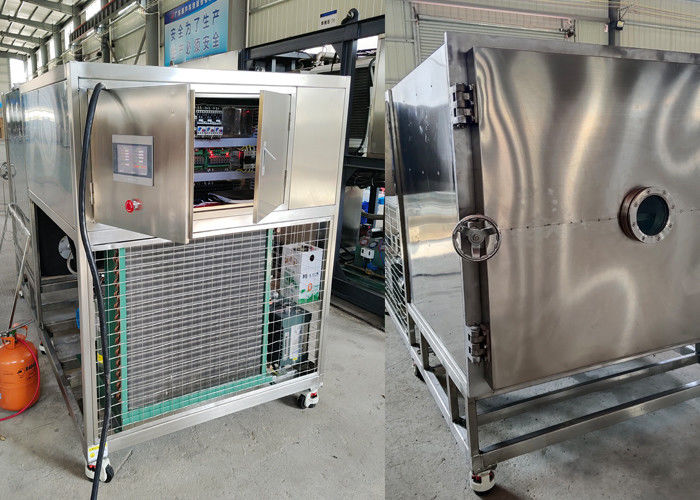

Large Capacity 300kg Food Vacuum Freeze Dryer Machine

Product Description:

The freeze dryer, also known as lyophilizer, is based on the process of sublimation. Sublimation is the transition of a substance directly from the solid phase to the gas phase, without passing through the liquid phase.

The basic steps involved in the working principle of a freeze dryer:

1. Freezing:
The material to be dried is placed in the freeze dryer's drying chamber.
The material is cooled to a very low temperature, typically between -40°C to -80°C, using a refrigeration system.
This low temperature causes the water content in the material to freeze, forming ice crystals.

2. Vacuum creation:
The drying chamber is then sealed and a vacuum is created inside using a vacuum pump.
The vacuum lowers the pressure in the chamber, typically to a range of 10~100Pa.

3. Sublimation:
The low pressure and low temperature in the drying chamber cause the ice crystals to sublimate directly into water vapor, bypassing the liquid phase.
The water vapor is then removed from the drying chamber and condensed on a refrigerated condenser or cold trap, which is kept at a temperature lower than the drying chamber.

4. Drying:
As the water is removed from the material through sublimation, the material becomes progressively drier.
The drying process continues until the desired level of dryness is achieved.

Features:

• Product Name: Food Vacuum Freeze Dryer
• Refrigeration System: Bitzer Or Leybold
• Warranty: 1 Year
• Installation Power: 65KW
• Cooling Method: Air-Cooled
• Heating Method: Electric Heating

Technical Parameters:

Applications:

1. Food Processing Industry: The GX-300 is ideal for the food processing industry as it can be used to preserve food products without compromising on their quality. It can be used to freeze dry fruits, vegetables, meat, and dairy products. The food vacuum freeze dryer can be used to create instant coffee, tea, and other beverages.

2. Pharmaceutical Industry: The GX-300 can be used to freeze dry pharmaceutical products such as vaccines, antibiotics, and other drugs. It is an essential tool for the pharmaceutical industry as it helps to preserve the efficacy of the drugs.

3. Research and Development: The GX-300 can be used in research and development labs to study the properties of different materials. It can be used to freeze dry samples of bacteria, viruses, and other microorganisms. It can also be used to preserve biological specimens for further study.

Support and Services:

The Food Vacuum Freeze Dryer is a high-tech product designed for food preservation through the use of vacuum freeze-drying technology. It is perfect for preserving various types of food such as fruits, vegetables, meat, and seafood.

The product comes equipped with advanced features including a touch screen control panel, automatic defrosting, and a vacuum pump. It is easy to use and maintain, making it an ideal choice for both home and commercial use.

We offer comprehensive technical support and services for our Food Vacuum Freeze Dryer product. Our team of experts is available to provide assistance with installation, operation, and maintenance. We also offer training and education on the use of the product to ensure optimal performance and longevity.

In addition to technical support, we offer a range of services to enhance the performance and efficiency of the Food Vacuum Freeze Dryer. These include regular maintenance, repair services, and replacement parts. Our services are designed to ensure that your product operates at optimal levels throughout its lifespan.
